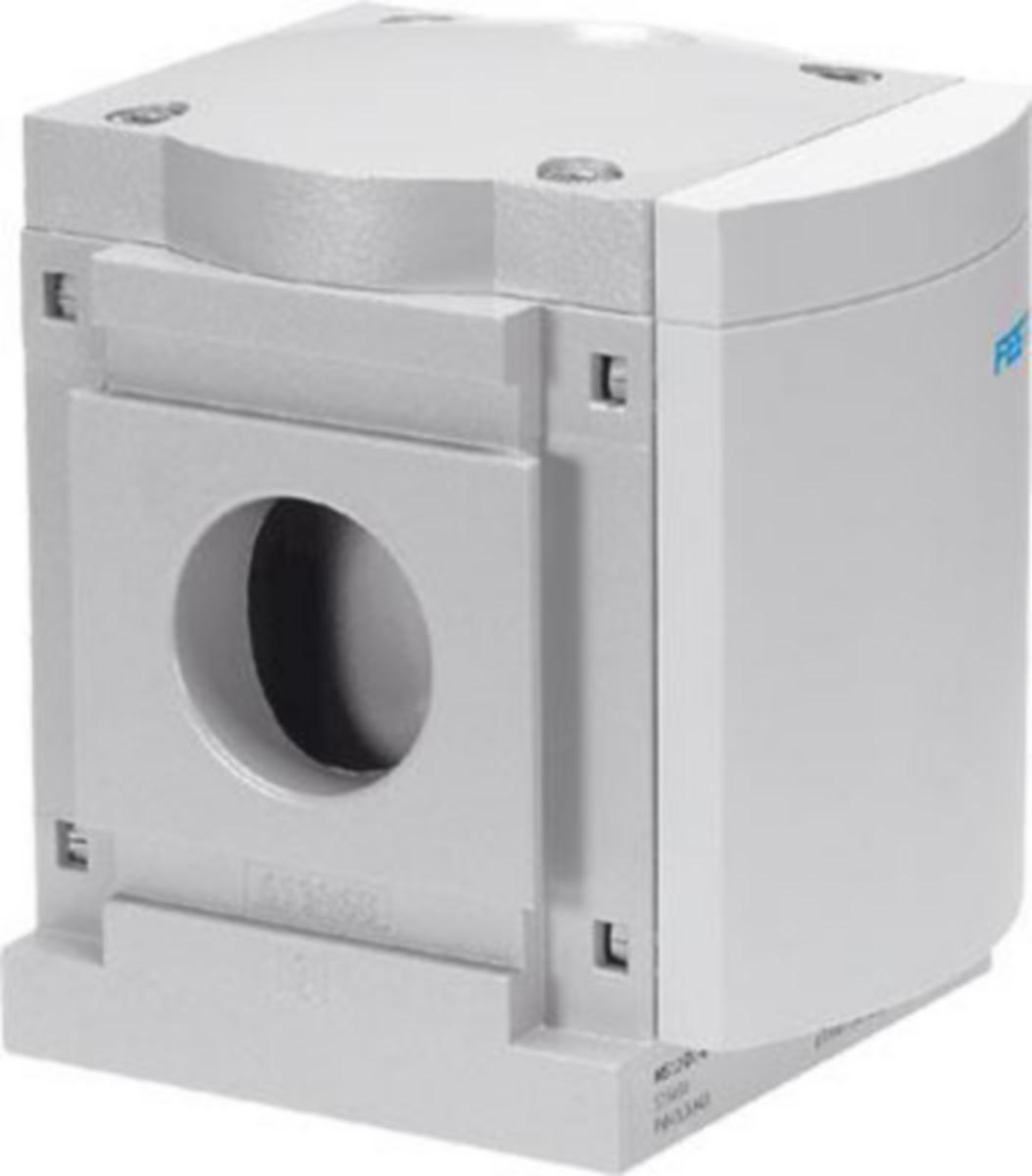

Pehmokäynnistysventtiili Festo MS12-DL MS-sarja

Flow rate 25,000 … 42,000 l/min. Temperature range –10 … +60 °C. Operating pressure 2 … 20 bar.
The duration of the pressure build-up is adjusted using the restrictor attached to the valve cap. The output pressure p2 rises slowly in accordance with the restrictor setting. The main seat opens when the switchthrough pressure is reached. Pneumatically actuated soft-start valve for slowly pressurising and venting pneumatic installations (for use with on-off valves EM and EE). The drives advance slowly and reliably into the initial position. Sudden and erratic movements are avoided. Pressure switching approx. 50% of operating pressure. Adjustable switching time delay.
