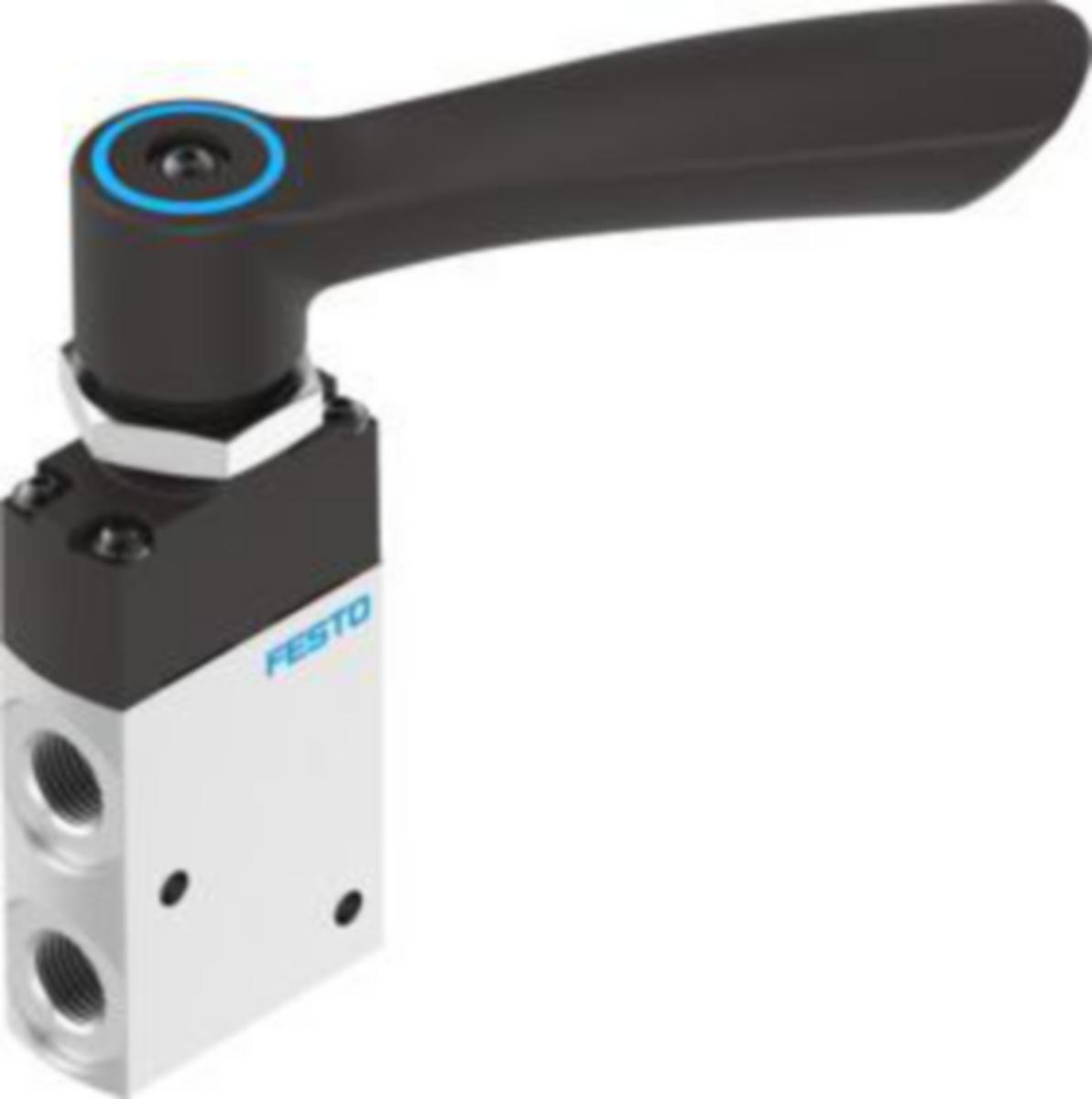

Käsikäyttöventtiili Festo VHEF-HT - KÄSIKÄYTTÖVENTTIILI FESTO VHEF-HT-B32-G14
Festo

Käsikäyttöventtiili Festo VHEF-HT

KÄSIKÄYTTÖVENTTIILI FESTO VHEF-HT-B32-G14
Tuotenumero
76832514
Toimittajan tuotenumero:
8080939





 Nähdäksesi varastosaldon ja hinnan
Innovative:
• Small and compact for a wide range of pneumatic applications
• Numerous valve functions can be selected: 3/2-way and 5/2-way functions
• With a flow rate of up to 1200 l/min, the valves offer high pneumatic performance for a wide range of tasks
• Lightweight
• Minimal actuating forces
Versatile:
• The flexibility of pneumatic working ports provides a practical way of solving individual requirements
• The 3/2-way valve can be used in normally closed (NC) or in normally open (NO) position
• Circular silencer or ducted exhaust air
• Suitable for vacuum
• Reverse operation possible
• Pressure range from vacuum to 10 bar possible
• Design as pushbutton valve, toggle lever valve, finger lever valve, hand lever valve, hand lever valve sideways, selector valve, selector valve sideways
Operationally safe:
• Durable due to proven piston slide and disc seat valves
• Sturdy design: basic valve made of metal, cover made of polymer
• Easy to assemble:
• Can be mounted using mounting holes
• Almost all valves can be mounted on a front panel (not possible with finger lever valve)
Common features:
• Mechanical spring
• Vacuum operation possible
• Reversible
• Directly actuated
• Ducted exhaust air
  • Tuotenumero
    76832514
  • Toimittajan tuotenumero:
    8080939
  • Materiaaliluokka
    K1810B
Tekniset tiedot
  • Pneum.liitäntä 1: G1/4
  • Pneum.liitäntä 2: G1/4
  • Käyttöpainealue: -0.95-10 bar
  • Nimellinen virtausnopeus: 870 l/min
  • Pneum.liitäntä 3: G1/4
