Festo

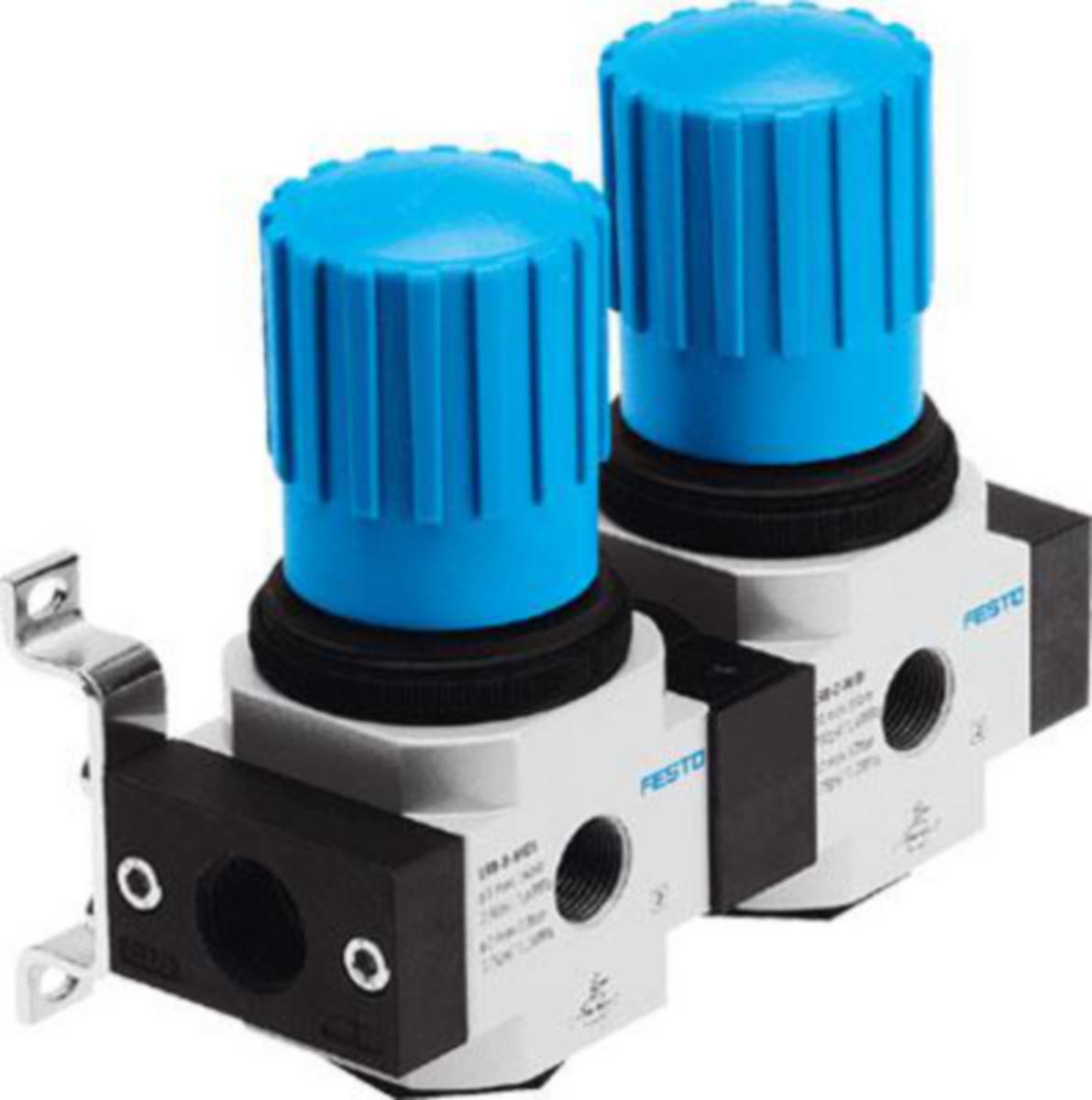

Paineensäädinyhdistelmä Festo LRB-K D-sarja
PAINEENSÄÄDINYHD 528952 FESTO LRB-1/4-D-7-O-K2-MINI
Tuotenumero Toimittajan tuotenumero:
T18103858
528952
Nähdäksesi varastosaldon ja hinnan
Flow rate 1,600 … 3,800 l/min. Temperature range –10 … +60 °C. Operating pressure 1 … 16 bar.
Good control characteristics with low hysteresis and primary pressure compensation. Manifold assembly with through air supply. For configuring a regulator manifold with independent pressure ranges. Two pressure regulation ranges: 0.5 … 7 bar and 0.5 … 12 bar. Settings secured via detent on knob and push-in adjustment lock. Directly actuated diaphragm regulator.
Good control characteristics with low hysteresis and primary pressure compensation. Manifold assembly with through air supply. For configuring a regulator manifold with independent pressure ranges. Two pressure regulation ranges: 0.5 … 7 bar and 0.5 … 12 bar. Settings secured via detent on knob and push-in adjustment lock. Directly actuated diaphragm regulator.
- Tuotenumero T18103858
- Toimittajan tuotenumero: 528952
- Materiaaliluokka K1810B
Tekniset tiedot
- Paineensäätöalue: 0.5-7.0 bar
- Pneum.liitäntä 1: G1/4
- Max. painehystereesi: 0.2 bar
- Nimellinen virtausnopeus: 1800 l/min
