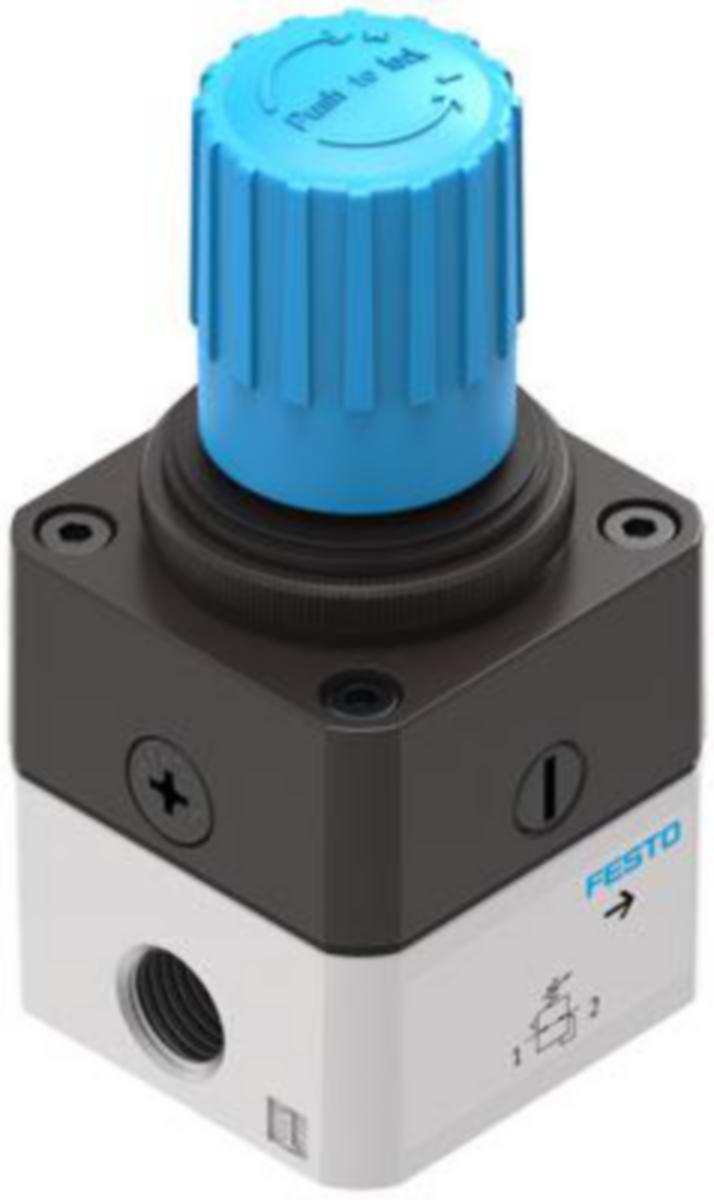

Tarkkuuspaineensäädin Festo LRP/LRPS koko 50

Flow rate 800 … 2,300 l/mi. Temperature range –10 … +60 °C. Operating pressure 1 … 12 bar.
The precision pressure regulator controls operating pressure (secondary side) with a diaphragm pilot control, which acts upon the main seat and thus achieves improved regulating characteristics. Precision pressure adjustment possible both in static and dynamic applications. Pressure hysteresis of <0.02 bar for flow rate characteristic curve. Good response characteristics during rapid alteration of supply pressure and flow rate. Supply pressure fluctuations are almost entirely compensated. Product variants LRP-…-EX4 can be used in zones 1 and 2 of explosive gas atmospheres and in zones 21 and 22 of explosive dust atmospheres.
