Suodatinsäädinyksikkö Festo LFR

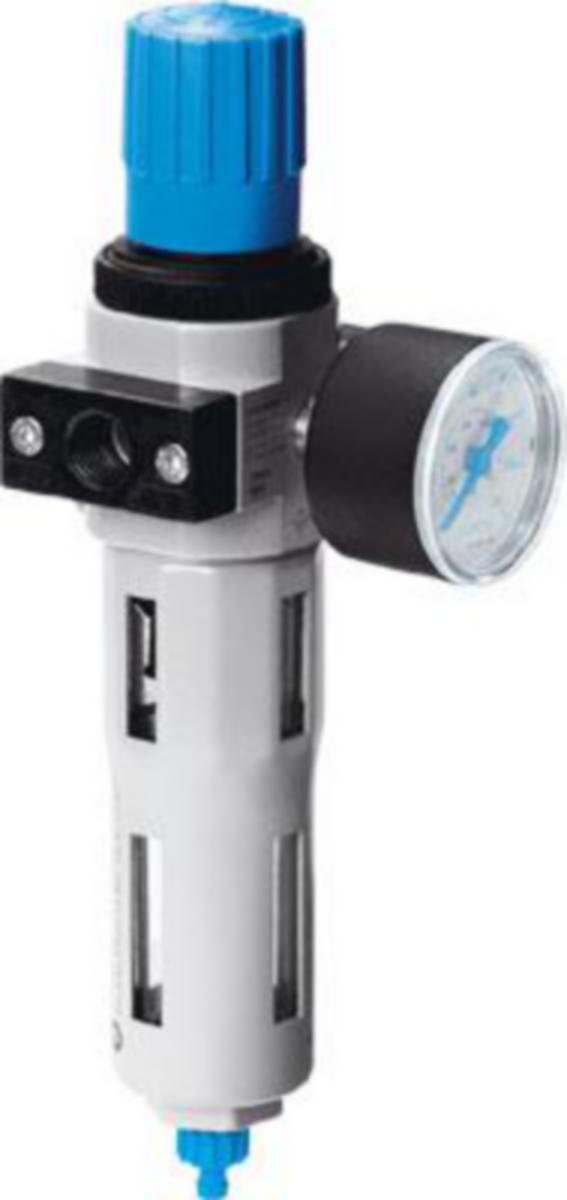

SUODATINSÄÄDINYKSIKKÖ 162703 FESTO LFR-1/4-D-7-MINI
Tuotenumero Toimittajan tuotenumero:
T18102103
162703
Nähdäksesi varastosaldon ja hinnan
Flow rate 110 … 11,000 l/min. Temperature range –10 … +60 °C. Operating pressure 1 … 16 bar.
Space-saving design with filter and regulator in a single unit. Good particle separation and high flow rate. Good regulating characteristics with minimal hysteresis. Two pressure regulation ranges: 0.5 … 7 bar and 0.5 … 12 bar. Two pressure gauge connections for flexible installation. Setting values are secured by locking the rotary knob. With manual, semi-automatic or fully automatic condensate drain. Choice of filter cartridges: 5 μm or 40 μm.
Space-saving design with filter and regulator in a single unit. Good particle separation and high flow rate. Good regulating characteristics with minimal hysteresis. Two pressure regulation ranges: 0.5 … 7 bar and 0.5 … 12 bar. Two pressure gauge connections for flexible installation. Setting values are secured by locking the rotary knob. With manual, semi-automatic or fully automatic condensate drain. Choice of filter cartridges: 5 μm or 40 μm.
- Tuotenumero T18102103
- Toimittajan tuotenumero: 162703
- Materiaaliluokka K1810B
Tekniset tiedot
- Paineensäätöalue: 0.5-7.0 bar
- Pneum.liitäntä 1: G1/4
- Käyttöpainealue: 1-16 bar
- Käyttölämpötila: -10-60 °C
- Suodatusaste: 40 µm
- Virtaus: 1200-1500 l/min
- Nimellinen virtausnopeus: 1500 l/min
