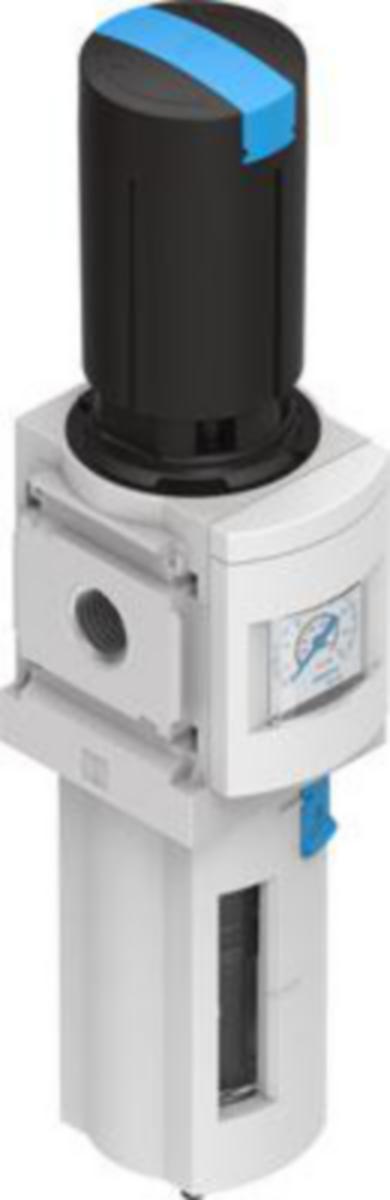

Suodatinsäädinyksikkö Festo MS4/MS6-LFR, MS-sarja

Flow rate 850 … 7,200 l/min. Temperature range –10 … +60 °C. Operating pressure 0.8 … 20 bar.
With this device, the filter and pressure regulator are combined into a single unit. The sintered filter with water separator removes contamination, pipe sinter, rust and condensate from the compressed air.
Good regulation characteristics with low hysteresis and primary pressure compensation. Good particle and condensate separation. Available with or without secondary venting. High flow rate. Directly-actuated diaphragm
regulator. Four pressure regulation ranges: 0.3 … 4 bar, 0.3 … 7 bar, 0.5 … 12 bar and 0.5 … 16 bar. Regulator lock for protecting the values against adjustment. Two pressure gauge connections for different fitting options. Return flow option for exhausting from output 2 to output 1 already integrated. Optional pressure sensor. Optional device variant EX4 for use in potentially explosive areas in zones 1, 2, 21 and 22. Choice of filter cartridges:
5 μm or 40 μm.
