Huoltolaite Festo LFR-K/LFRS-K, D-sarja

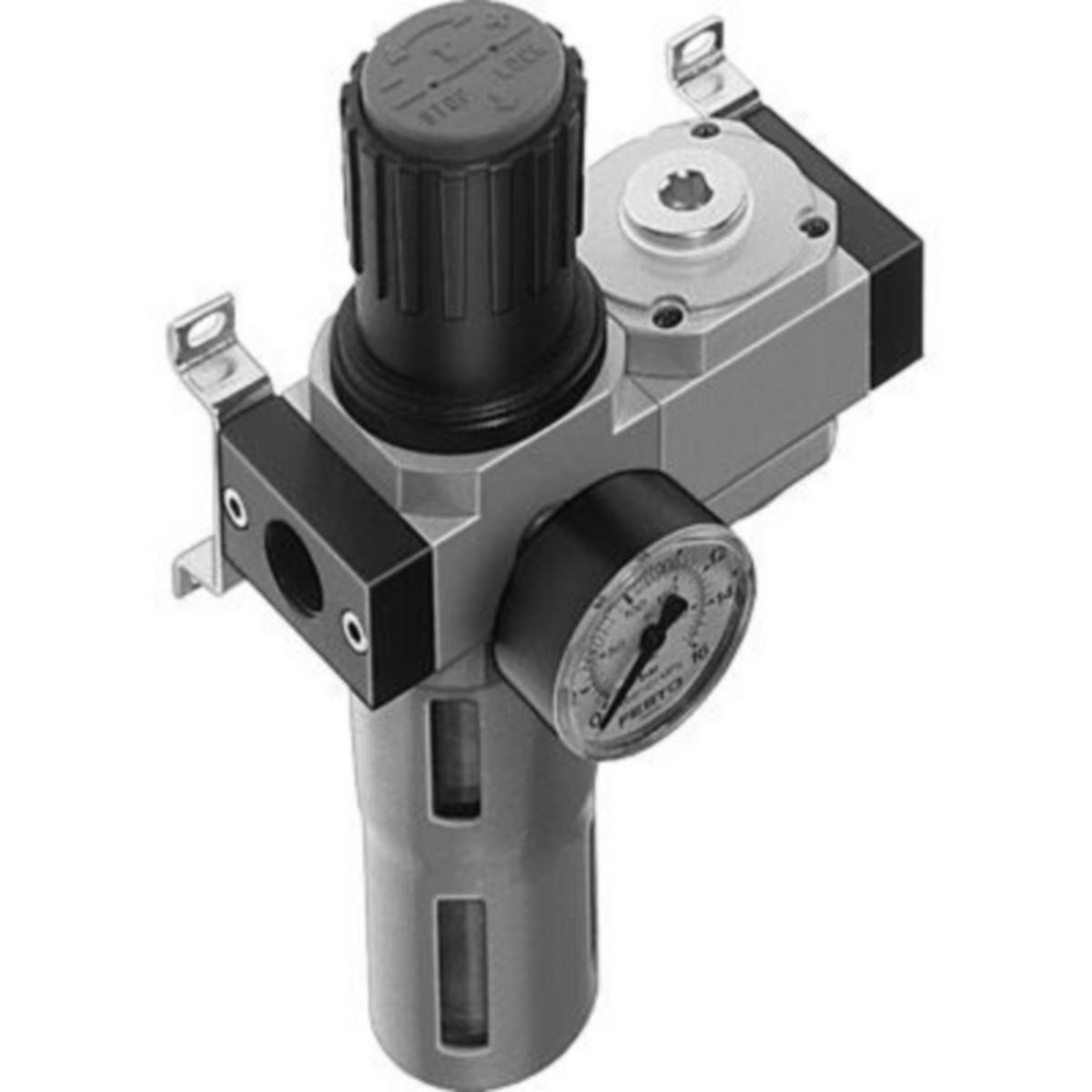

HUOLTOLAITE 185713 FESTO LFR-3/8-D-MIDI-KA
Tuotenumero Toimittajan tuotenumero:
T18102829
185713
Nähdäksesi varastosaldon ja hinnan
LFR-KA/LFRS/KA
Flow rate 720...9400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KB/LFRS-KB
Flow rate 700...8400 l/min.Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KC/LFRS-KC
Flow rate 750...8400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KD/LFRS-KD
Flow rate 595...5000 l/min.Temperature range -10...+60°C. Operating pressure 3...16 bar.
LFR-KE/LFRS-KE
Flow rate 720...9400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KF/LFRS-KF
Flow rate 700...8400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KG/LFRS-KG
Flow rate 575...4900 l/min.Temperature range -10...+60°C. Operating pressure 3...16 bar.
LFR-KB polymer
Nominal Flow rate 1900 l/min. Temperature range -5...+50°C. Operating pressure 1.5...10 bar.
LFR-KC polymer
Nominal Flow rate 1900 l/min. Temperature range -5...+50°C. Operating pressure 1.5...10 bar.
Options for service unit combinations
KA Filter regulator, branching module KB On-off valve manually actuated, filter regulator, branching module
KC On-off valve manually actuated, filter regulator
KD Filter regulator, on-off valve solenoid actuated, 24 V DC, soft-start valve pneumatically actuated
KE Filter regulator, branching module with pressure switch
KF On-off valve manually actuated, filter regulator, branching module with pressure switch
KG On-off valve manually actuated, filter regulator, on-off valve solenoid actuated, 24 V DC, soft-start valve pneumatically actuated, branching module withpressure switch
Flow rate 720...9400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KB/LFRS-KB
Flow rate 700...8400 l/min.Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KC/LFRS-KC
Flow rate 750...8400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KD/LFRS-KD
Flow rate 595...5000 l/min.Temperature range -10...+60°C. Operating pressure 3...16 bar.
LFR-KE/LFRS-KE
Flow rate 720...9400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KF/LFRS-KF
Flow rate 700...8400 l/min. Temperature range -10...+60°C. Operating pressure 1...16 bar.
LFR-KG/LFRS-KG
Flow rate 575...4900 l/min.Temperature range -10...+60°C. Operating pressure 3...16 bar.
LFR-KB polymer
Nominal Flow rate 1900 l/min. Temperature range -5...+50°C. Operating pressure 1.5...10 bar.
LFR-KC polymer
Nominal Flow rate 1900 l/min. Temperature range -5...+50°C. Operating pressure 1.5...10 bar.
Options for service unit combinations
KA Filter regulator, branching module KB On-off valve manually actuated, filter regulator, branching module
KC On-off valve manually actuated, filter regulator
KD Filter regulator, on-off valve solenoid actuated, 24 V DC, soft-start valve pneumatically actuated
KE Filter regulator, branching module with pressure switch
KF On-off valve manually actuated, filter regulator, branching module with pressure switch
KG On-off valve manually actuated, filter regulator, on-off valve solenoid actuated, 24 V DC, soft-start valve pneumatically actuated, branching module withpressure switch
- Tuotenumero T18102829
- Toimittajan tuotenumero: 185713
- Materiaaliluokka K1810B
Tekniset tiedot
- Pneum.liitäntä 1: G3/8
- Paineensäätöalue: 0.5-12.0 bar
- Suodatusaste: 40 µm
- Käyttölämpötila: -10-60 °C
- Käyttöpainealue: 1-16 bar
- Nimellinen virtausnopeus: 2620 l/min
